D-Series Electric Power Tools for hand & foot

  1. Powerful Swiss – Made Motor
    Imported from Switzerland, the high – torque motor provides strong and stable power, ensuring efficient cutting, drilling, and grinding during hand and foot surgeries.
  2. Versatile Interface Configuration
    Offers a wide range of interface options to connect various specialized attachments. This flexibility caters to different surgical needs, from delicate bone shaping to soft tissue procedures.
  3. Complete Toolset
    Comes with a comprehensive set of tools that cover all aspects of hand and foot surgeries. Surgeons can find the right instrument for each step, streamlining the surgical process.
  4. Ergonomic Design
    The handpiece is designed to fit comfortably in the hand, reducing operator fatigue during long – term use. The control panel layout is intuitive for easy operation.
  5. Sterilization Compatibility
    All components are compatible with standard medical sterilization methods, such as autoclaving. This ensures a sterile environment for every surgical procedure.

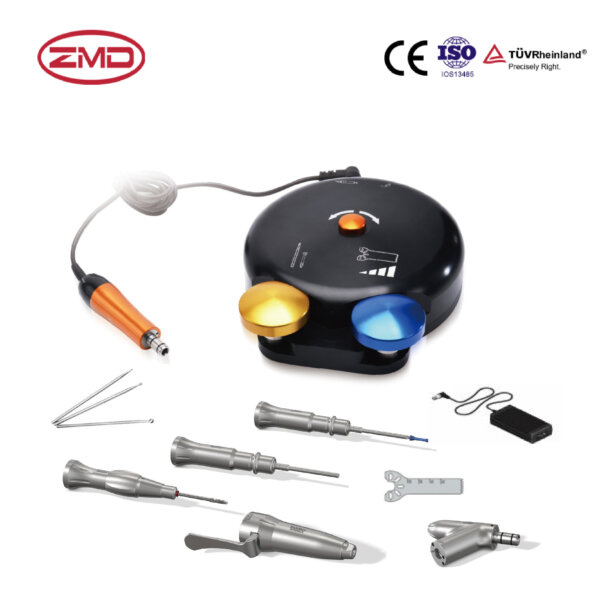

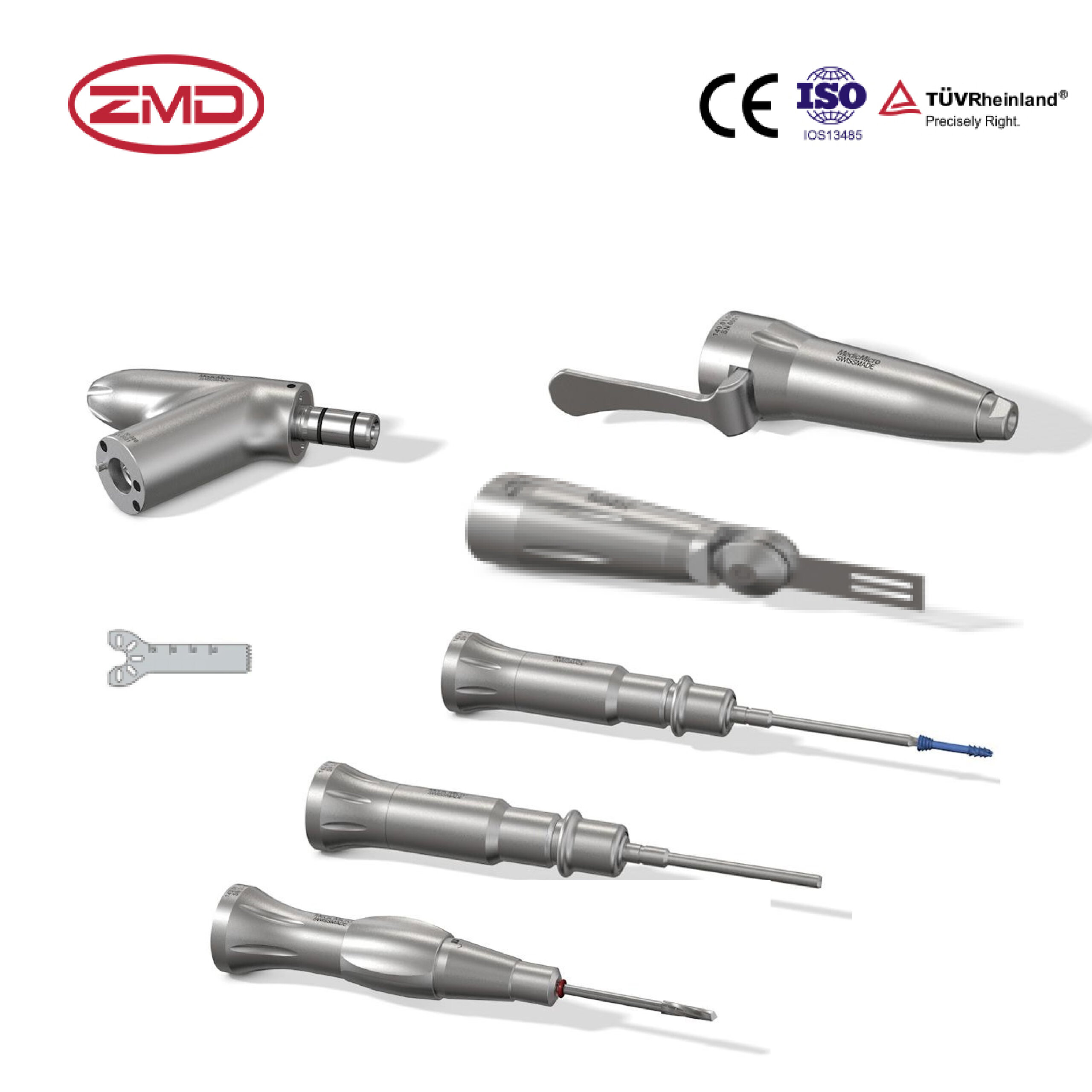

Code Product name Size
PD001 Power tool \

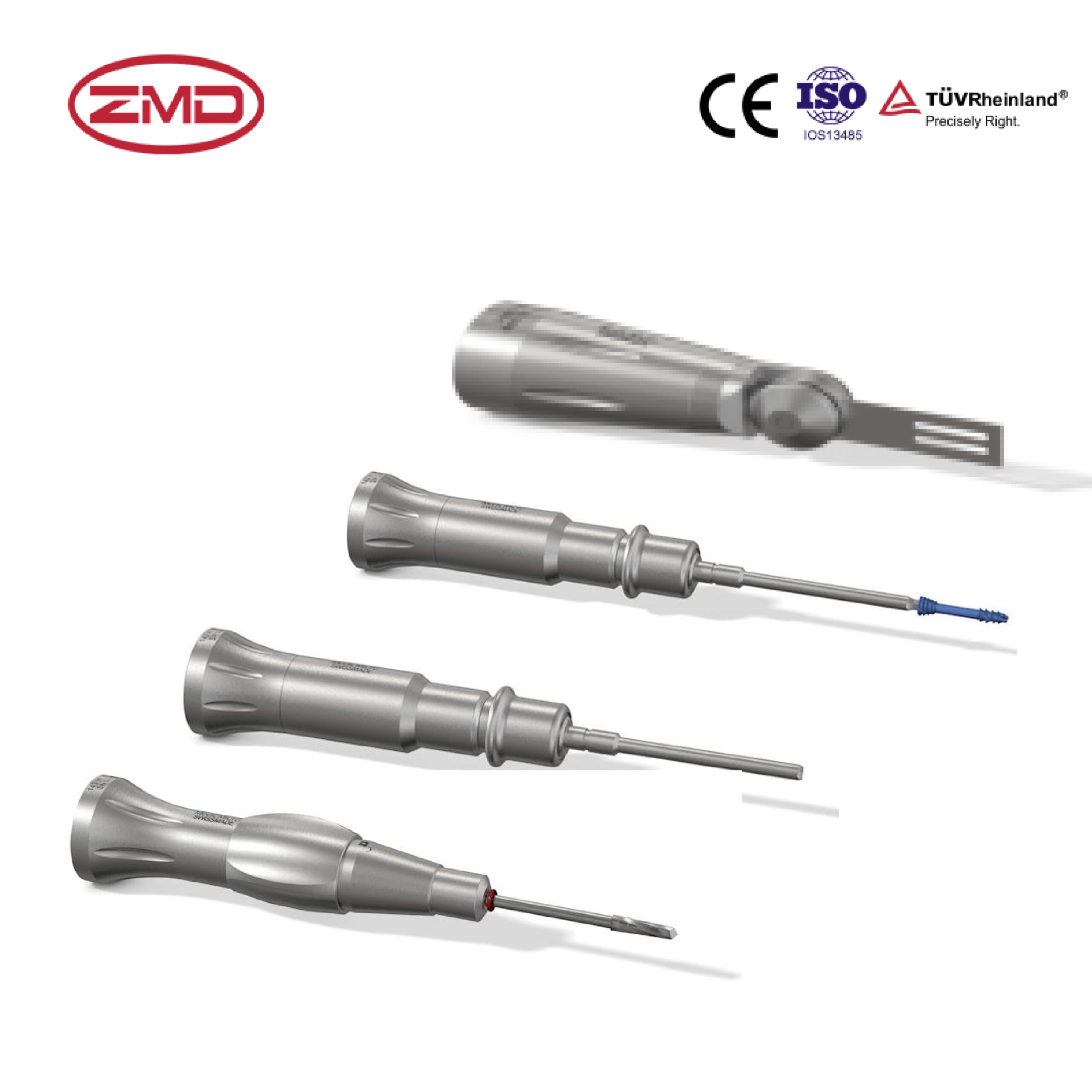

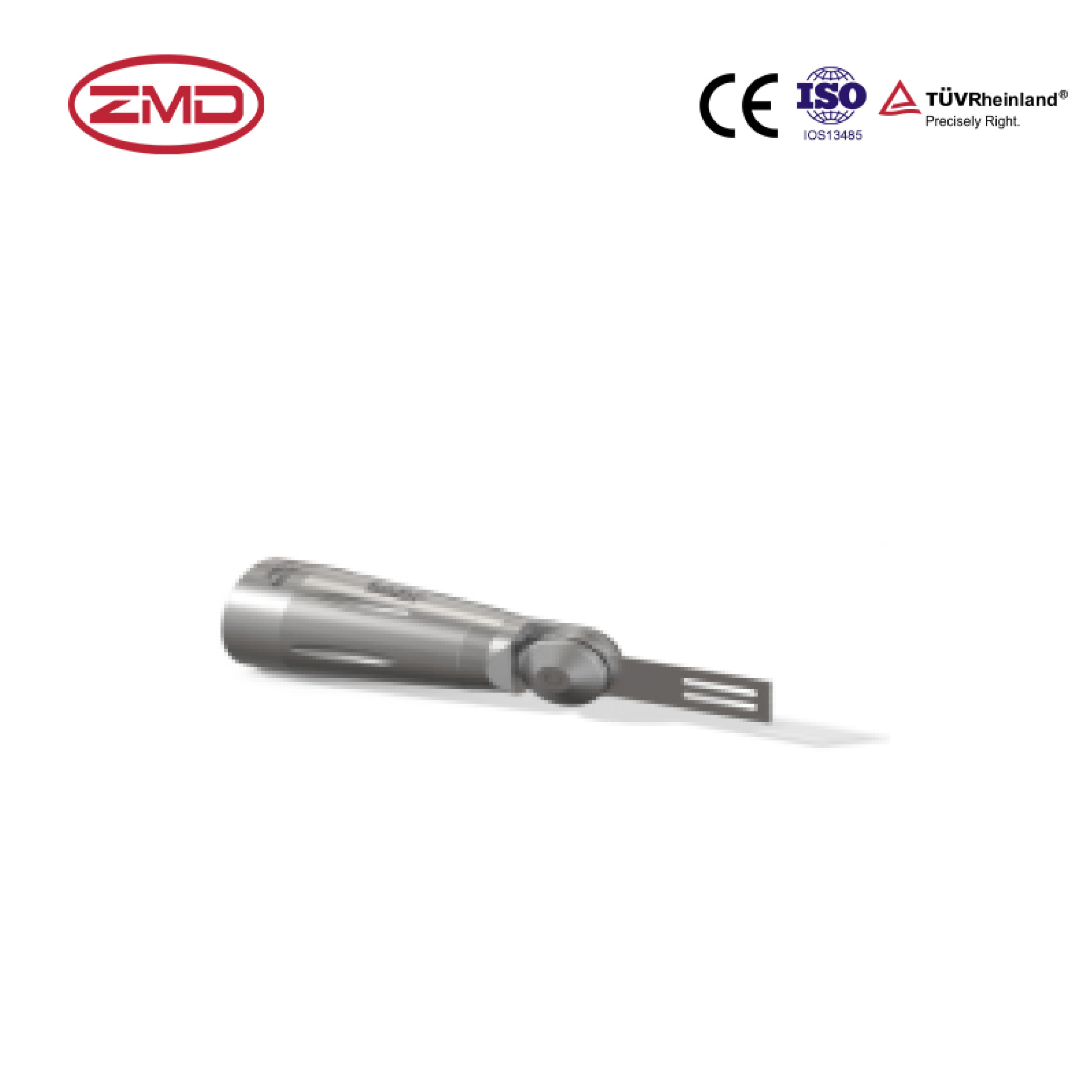

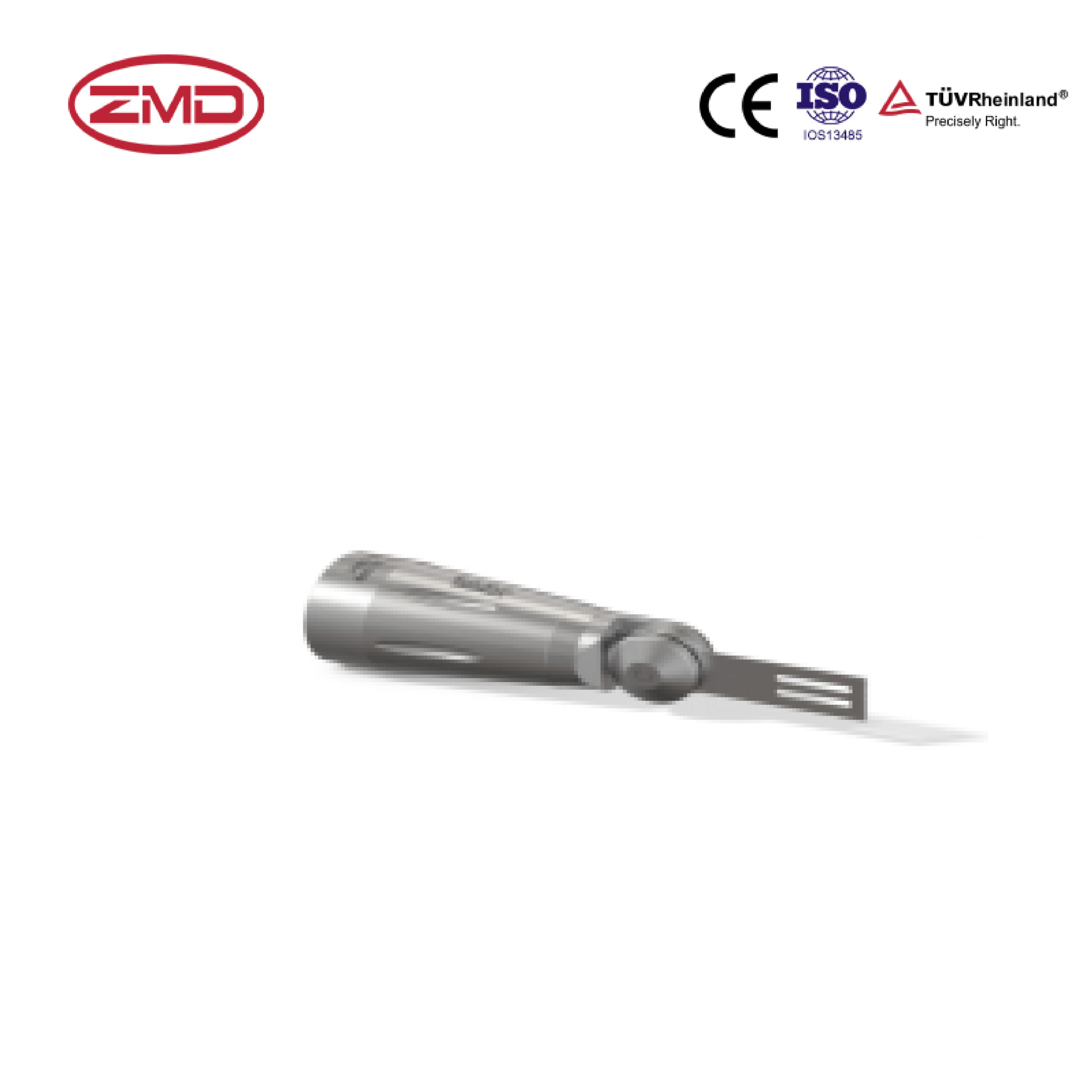

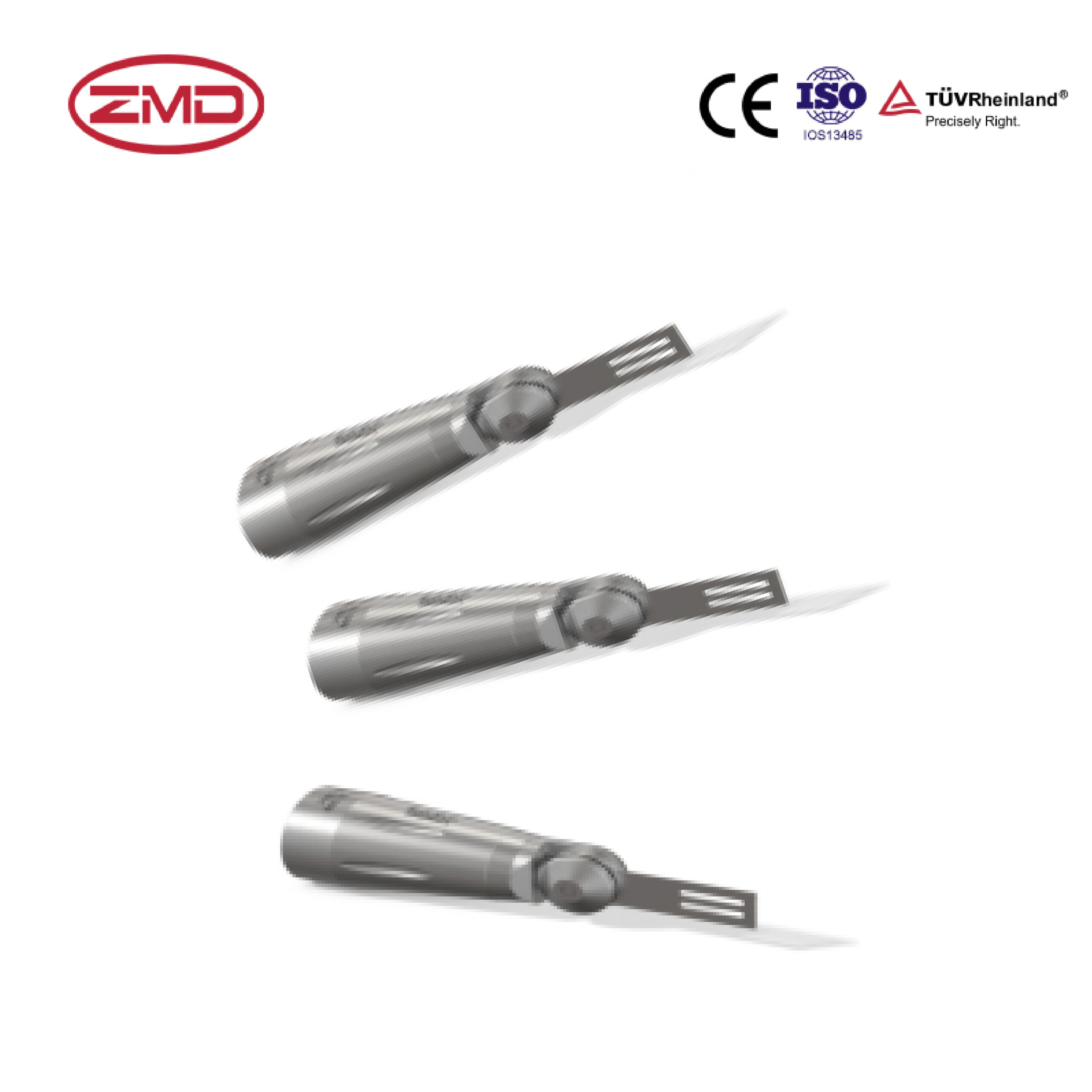

PD002 Sagittal saw attachment Speed: 0-15000cpm,with  5  Stryker coupling saw blades

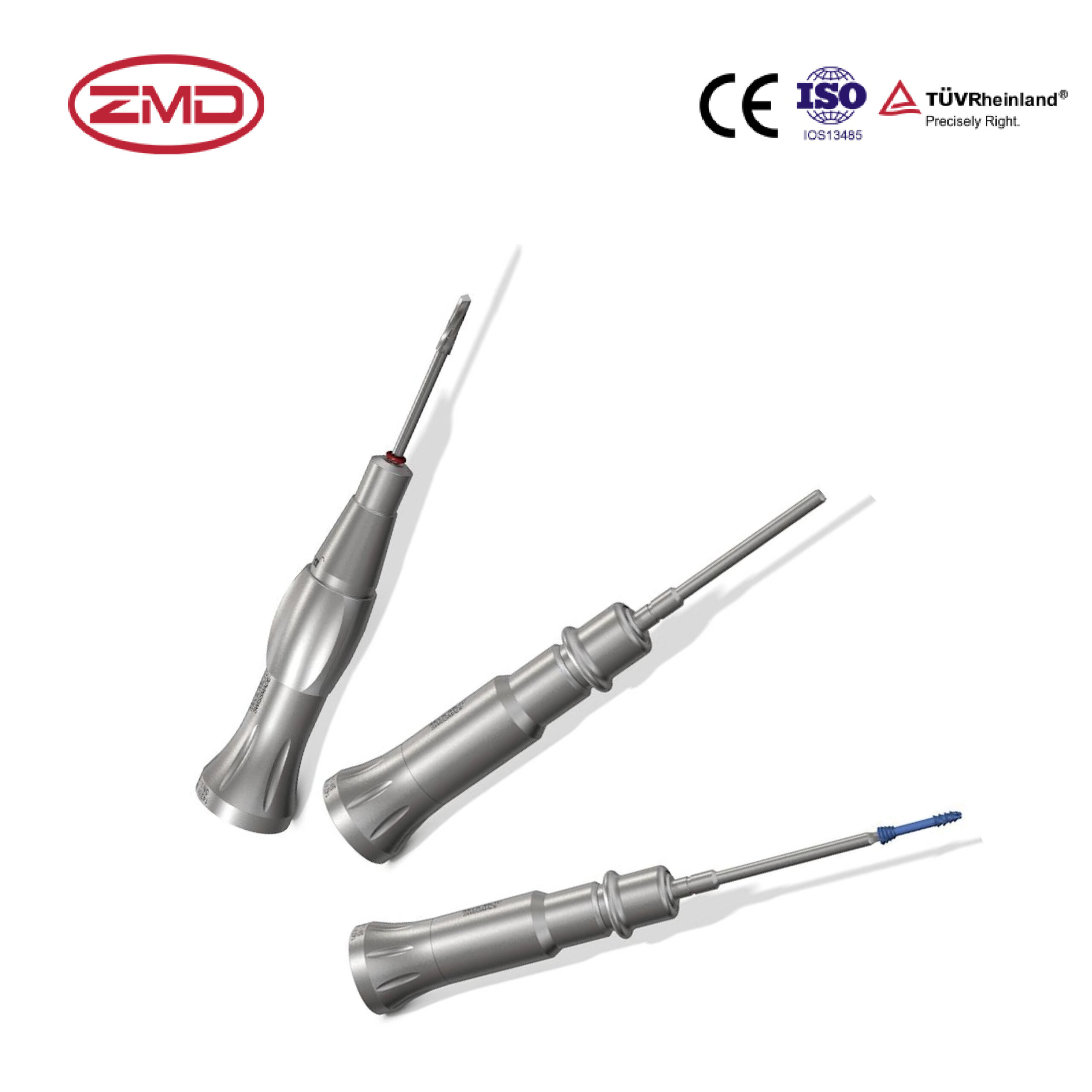

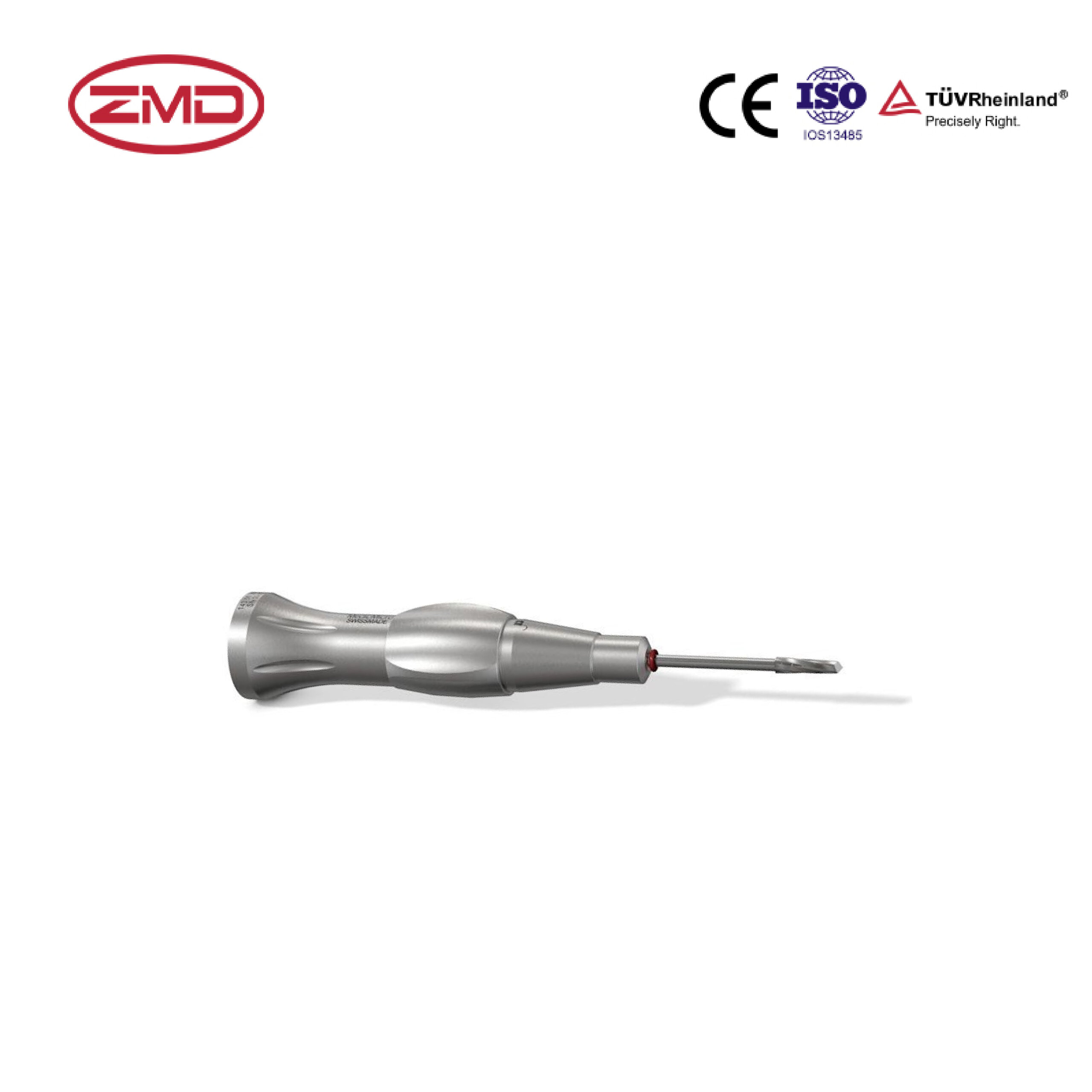

PD003 Percutaneous bur attachment To connect with shaft diameter Ø 2.35 mm, XZ and XXZ type of milling drill bits
Speed: max 8000 rpm
PD004 AO 4:1 drill attachment Speed: max 2000 rpm
Small AO drill bit
PD005 AO 16:1 drill attachment Speed: max 500 rpm
Small AO drill bit
PD006 Pin driver attachment Pin Diameter Ø0.8 – 1.2 mm
Automatic tightening

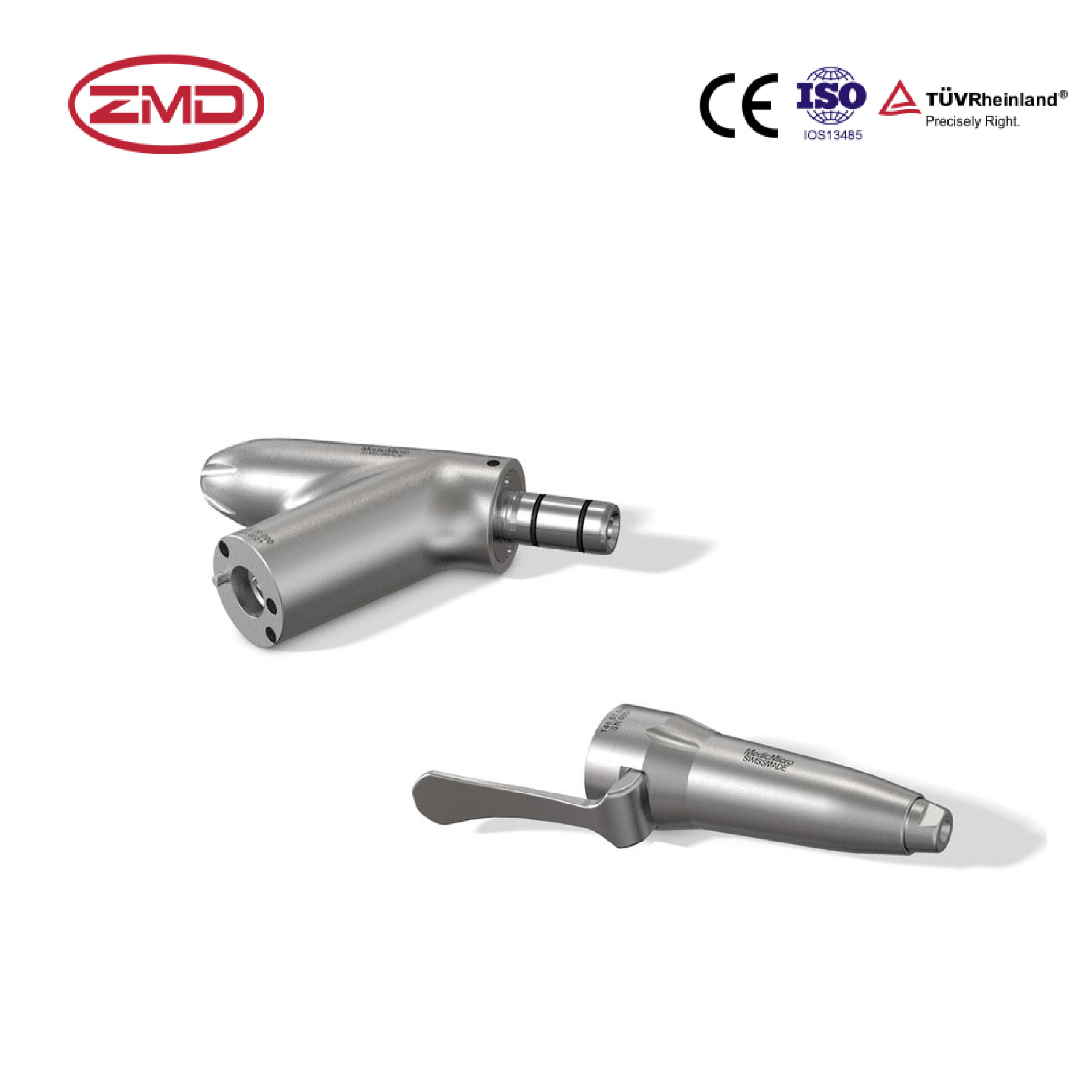

PD007 Angle transmission adaptor Optional, provide  speed reducer 2:1

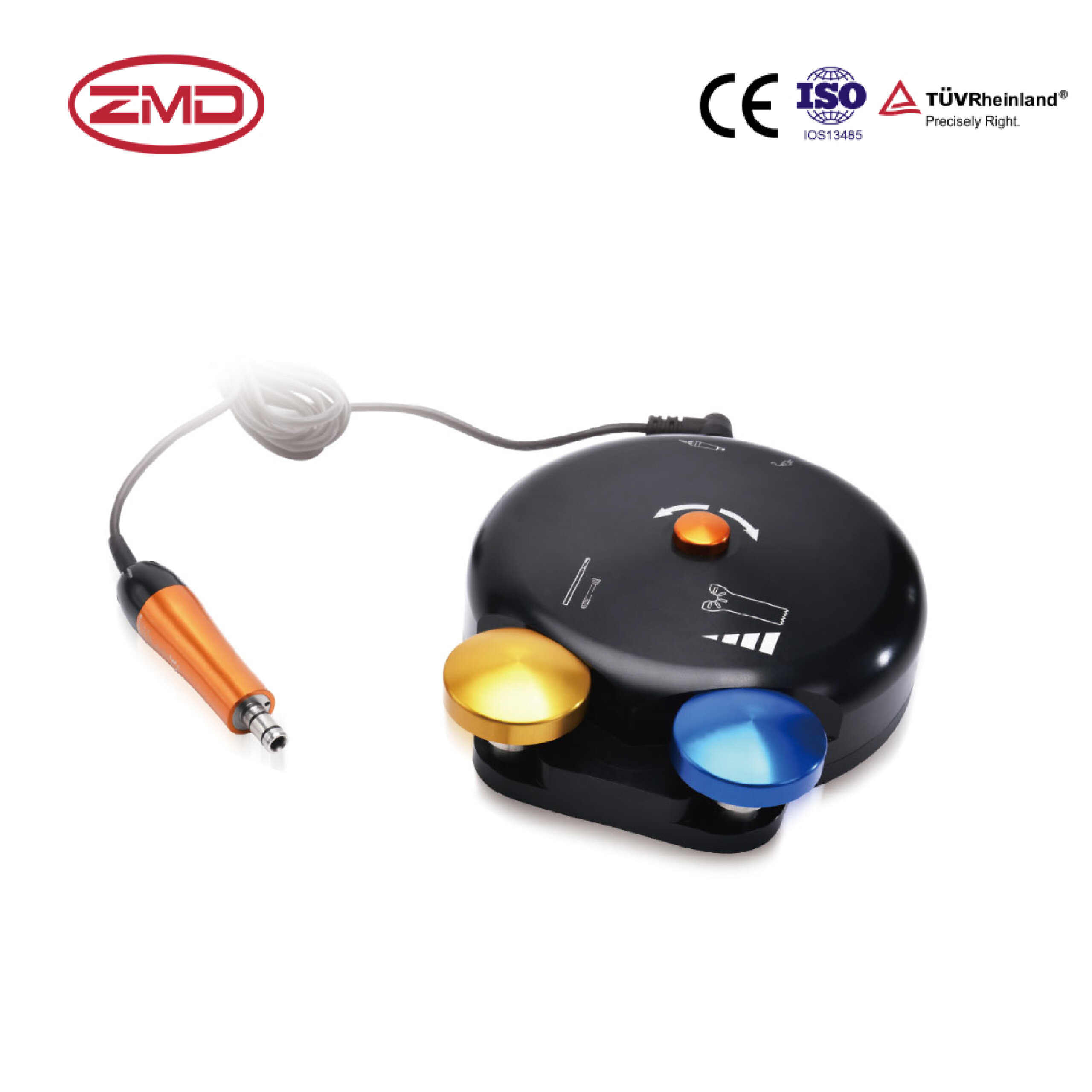

PD008 Foot control Input: DC 36V 2.77A
output: 0-36V 0-8A
IPX 8
PD009 Power adaptor Input:
100-240 VAC 50-60 Hz
1.25-0.5 A
Output:
36 VDC 2.77A Max

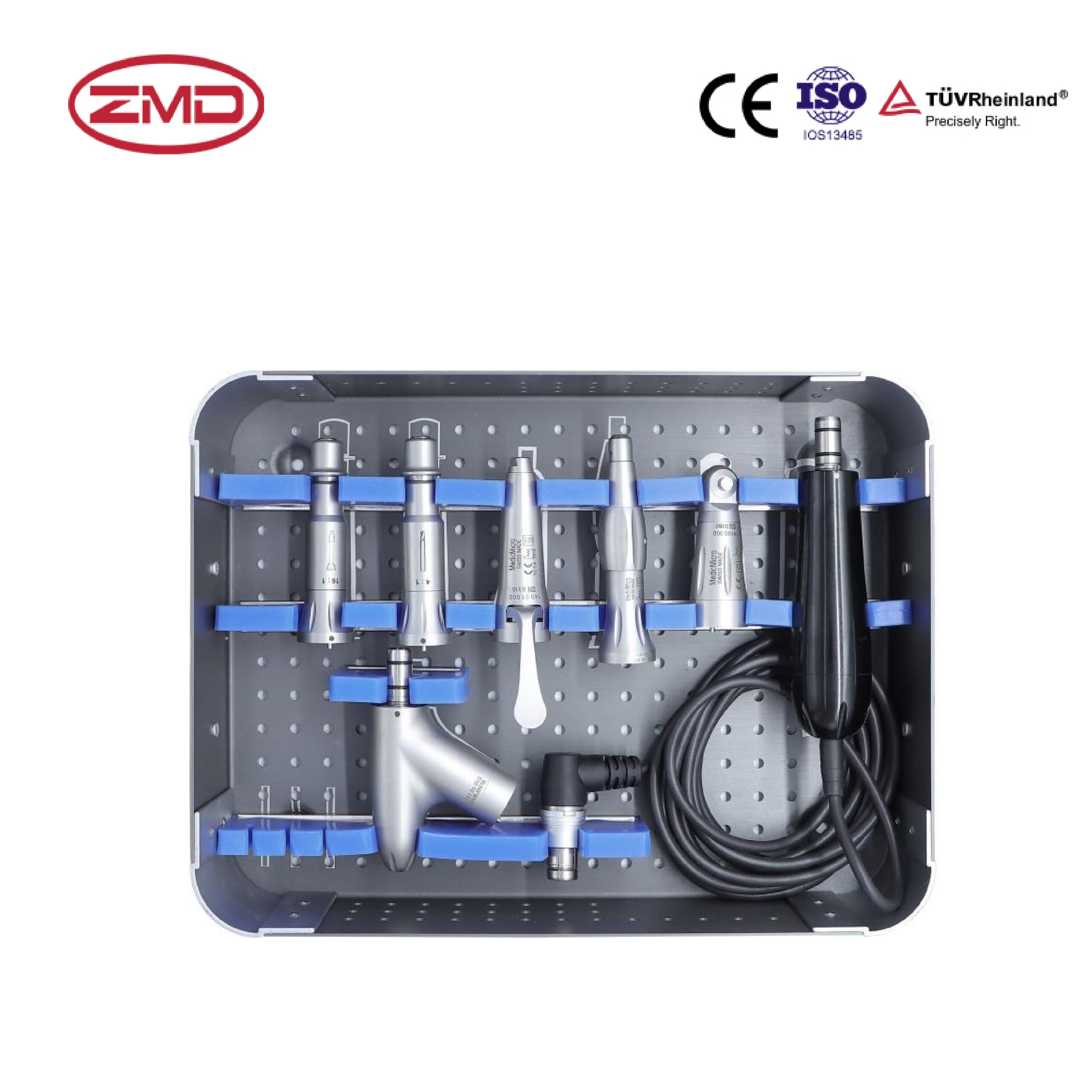

PD010 Sterilization case \
PD011 Sagittal saw blade /
PD028 Milling drill bits Diameter 1.2/2.3, Cutting length: 16mm, Total length: 65mm



Application Scenarios

  1. Hand Surgery
    Used in procedures like carpal tunnel release, finger joint reconstruction, and metacarpal bone fracture repair. The precision of the tools helps in delicate operations to restore hand function.
  2. Foot Surgery
    Applicable for bunion removal, ankle fusion, and metatarsal bone surgeries. The powerful yet precise tools assist in reshaping bones and soft tissues for improved foot mobility and pain relief.
  3. Podiatric Procedures
    Ideal for treating various foot conditions, including ingrown toenails, plantar fasciitis, and hammertoe correction. The diverse toolset allows for customized treatment approaches.
  4. Reconstructive Surgeries
    In cases where hand or foot deformities need correction, these power tools play a crucial role in bone cutting, grafting, and soft – tissue manipulation to achieve the desired anatomical restoration.
