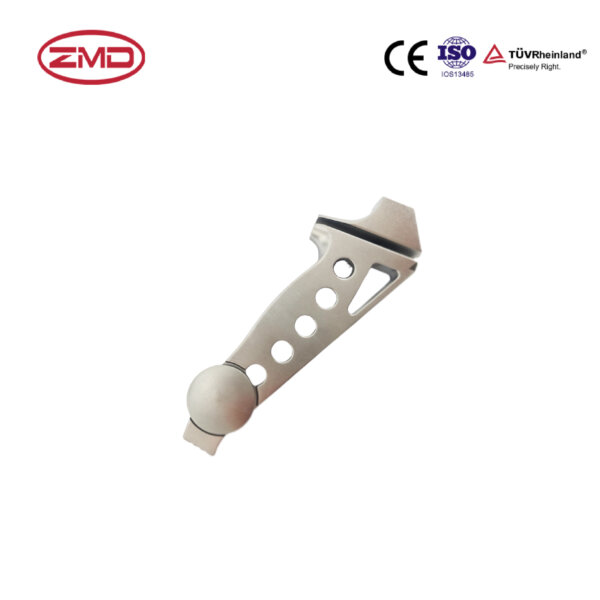

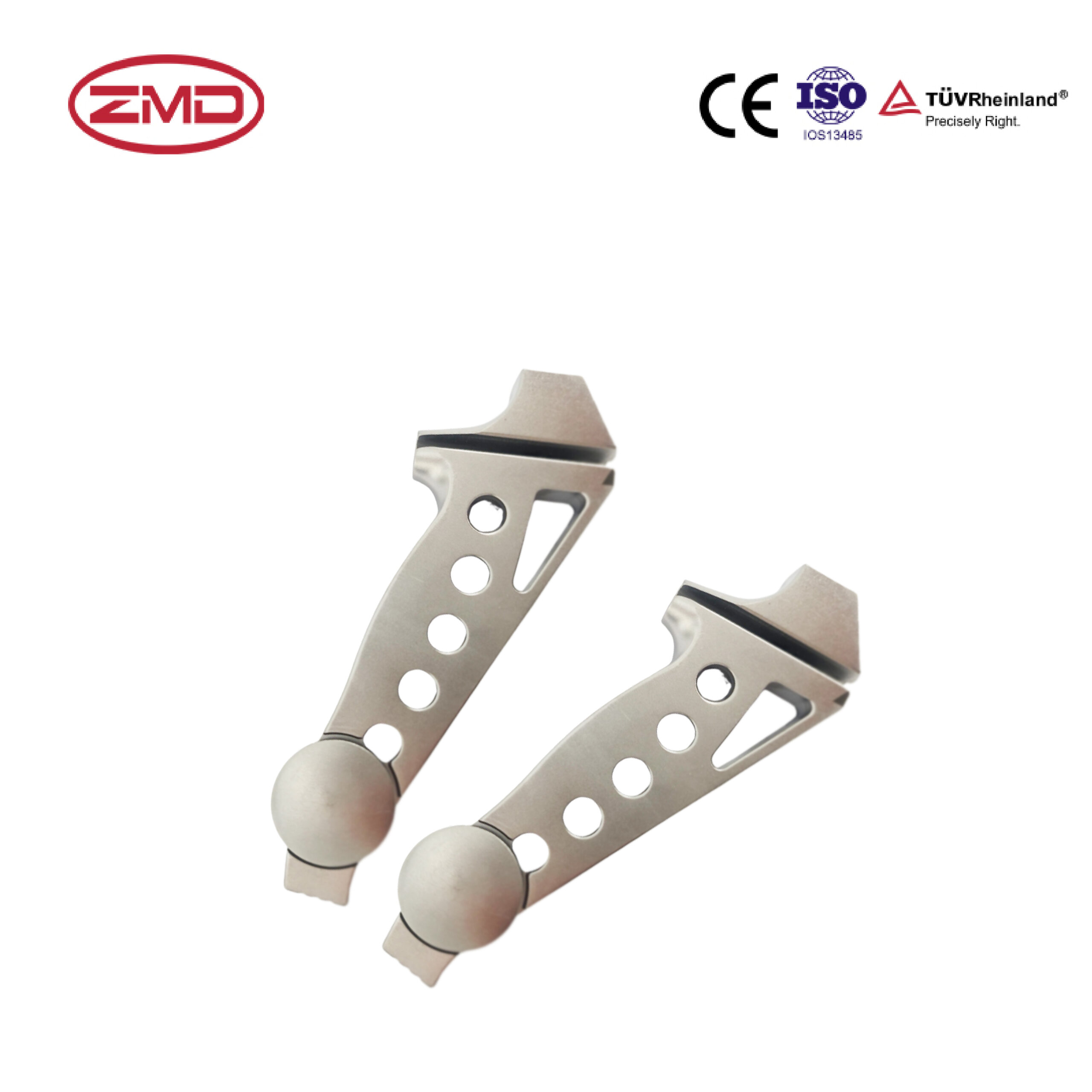

Orthopedic Drill Guide

Anatomical Precision
- Laser – marked depth scales (0–40mm) → guarantee accurate tunnel positioning for ACL grafts.
- Adjustable angles (15°–45°) → mirror the natural slope of the anterior cruciate ligament.
Versatile Compatibility
- Works with drill bits of φ2.0–φ6.0mm → suits different graft types (hamstring, patellar tendon).
- Integrates perfectly into ACL instrument kits → simplifies the surgical workflow.
Robust Titanium Build
- Crafted from medical – grade titanium → resists deformation even under high – torque drilling.
- A matte surface → cuts down on light glare during arthroscopic procedures.
User – Friendly Design
- A textured, balanced handle → lessens hand shaking during intricate drilling.
- A quick – lock system → secures the guide in 3 seconds → speeds up OR processes.
Easy Sterilization
- A smooth, non – porous surface → stops biofilm from forming.
- Endures over 1000 autoclave cycles → reliable for busy sports medicine clinics.

Coding	Product name	Specification
9001.6095	Orthopedic Drill Guide	III型

Orthopedic Drill Guide: What Is It?

A key orthopedic tool.

Directs drill bits to make exact bone tunnels in ACL reconstruction and other joint operations.
Merges anatomical accuracy, modular adaptability, and lasting construction to enhance graft placement and surgical results.

Applications of Orthopedic Drill Guide

ACL Reconstruction
- Drills femoral and tibial tunnels → ensures the graft’s tension and stability are like the original ligament.
Arthroscopic Surgeries
- Makes anchor holes for rotator cuff repair (shoulder) or meniscal allograft fixing (knee).
Minimally Invasive Procedures
- Lines up drills in narrow arthroscopic areas → reduces harm to soft tissues.
Surgical Training
- Used in simulation labs to teach accurate drilling skills → boosts trainee proficiency.
Cartilage Restoration
- Guides microfracture drills or osteochondral graft tunnels → aids in joint preservation.
